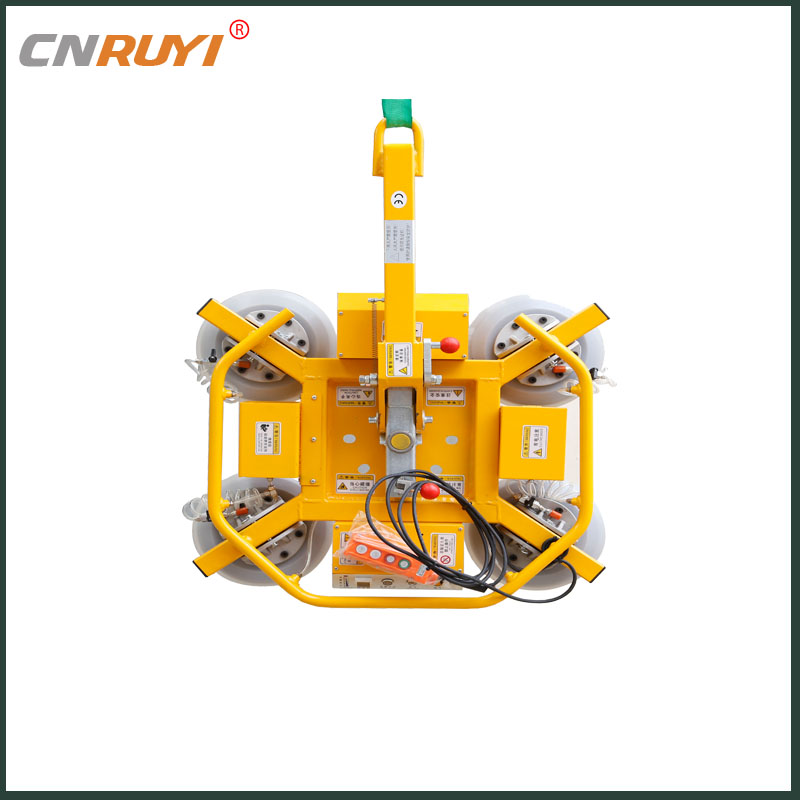

400Kg Vacuum Glass Lifter Sucker

Features

1.Sealed cover for components protection,safe and reliable. Widely used in glass deep processing and handling and glass curtain wall installation, usually used with bridge crane or cantilever crane.

2.Adjustable design, can be assembled in a variety of ways as needed, change the position of the suction cup to absorb glass of different shapes and sizes (can be customized according to the glass size)

3.The vertical plane is manually rotated 360°, and the horizontal plane is manually turned 90°.Electric suction and deflation.

4.Adopt American THOMAS vacuum pump + maintenance-free battery, no need to connect air source or power supply during use.

5.Japan's Panasonic digital display vacuum pressure switch and battery fuel gauge, can clearly monitor the complete operation of the equipment.

6.The equipment has its own vacuum pressure system, which can ensure that the whole vacuum system is maintained at a relatively constant safety pressure value in the process of glass handling.

7.The equipment comes with a vacuum pressure compensation system to ensure that the entire vacuum system maintains a relatively constant safety pressure during handling.It is equipped with a power-off pressure-keeping and alarm device. After an accidental power failure, the pressure-preserving function can extend the emergency processing time and make it safer to use.

8.Equipped with 12V backup battery, if the battery is dead in operation, it can be replaced in time to ensure the progress of the project.
